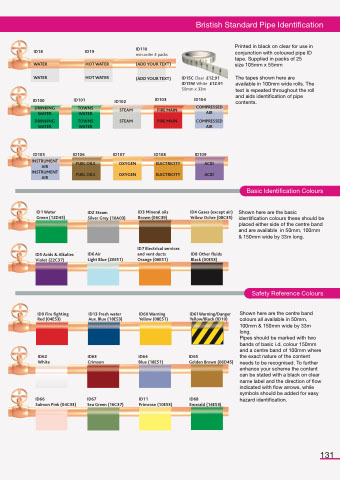

Page 131 - unpriced-2019
P. 131

                                                           ID18
ID100
ID105
ID1 Water Green (12D45)
ID19
ID110
min.order 4 packs
(ADD YOUR TEXT) (ADD YOUR TEXT)
ID103
ID108
ID3 Mineral oils Brown (06C39)
ID7 Electrical services and vent ducts Orange (06E51)
ID60 Warning Yellow (08E51)
ID64
Blue (18E51)
ID11
Primrose (10E53)
Printed in black on clear for use in conjunction with coloured pipe ID tape. Supplied in packs of 25
size 105mm x 55mm
The tapes shown here are available in 100mm wide rolls. The text is repeated throughout the roll and aids identification of pipe contents.
WATER WATER
DRINKING WATER
DRINKING WATER
HOT WATER HOT WATER
Bristish Standard Pipe Identification
                              ID101
ID106
ID102
ID107
ID2 Steam
Silver Grey (10A03)
ID6 Air
Light Blue (20E51)
ID13 Fresh water Aux. Blue (18E53)
ID63 Crimson
ID67
Sea Green (16C37)
ID15C Clear £12.91 ID15W White £12.91 50mm x 33m
ID104
ID109
ID4 Gases (except air) Yellow Ochre (08C35)
ID8 Other fluids Black (00E53)
ID61Warning/Danger Yellow/Black (ID10)
ID65
Golden Brown (06D45)
ID68
Emerald (14E53)
          TOWNS WATER
TOWNS WATER
                    STEAM STEAM
FIRE MAIN FIRE MAIN
COMPRESSED AIR
COMPRESSED AIR
                                                                  INSTRUMENT AIR INSTRUMENT AIR
                      FUEL OILS FUEL OILS
OXYGEN OXYGEN
ELECTRICITY ELECTRICITY
ACID ACID
                        Basic Identification Colours
 Shown here are the basic identification colours these should be placed either side of the centre band and are available in 50mm, 100mm & 150mm wide by 33m long.
                                                         ID5 Acids & Alkalies Violet (22C37)
ID9 Fire fighting Red (04E53)
ID62 White
ID66
Salmon Pink (04C33)
Shown here are the centre band colours all available in 50mm, 100mm & 150mm wide by 33m long.
Pipes should be marked with two bands of basic i.d. colour 150mm and a centre band of 100mm where the exact nature of the content needs to be recognised. To further enhance your scheme the content can be stated with a black on clear name label and the direction of flow indicated with flow arrows, while symbols should be added for easy hazard identification.
